Troubleshooting

Installation & Setup

Package not found in Xcode

Ensure you're adding the package via File → Add Package Dependencies..., entering https://github.com/Presage-Security/SmartSpectra-Swift, and selecting Branch → main. Specific version tags may not exist — branch is required.

If you pasted a subdirectory URL such as /tree/main/swift/sdk, replace it with the repository root URL above. Swift Package Manager resolves the package from the repo root.

Build fails on simulator

The SDK requires a physical device with a camera. Select a real device target in Xcode — the simulator is not supported.

Camera & Permissions

NSCameraUsageDescription missing

In Xcode:

1. Select your app target.
2. Open the Info tab.
3. Add a new row for Privacy - Camera Usage Description.
4. Set the value to This app needs camera access to measure vitals.

The SDK fails gracefully with a clear runtime error if this key is absent or empty.

or

Add to your Info.plist:

<key>NSCameraUsageDescription</key>
<string>This app needs camera access to measure vitals.</string>

Camera permission denied at runtime

If the user previously denied camera access, the SDK surfaces an action to open iOS Settings. Ensure your Info.plist description string clearly explains why camera access is needed — iOS shows this string in the permission prompt, and a vague description increases denial rates.

Authentication

Auth errors / measurements not starting

1. Verify your API key is correct, or that your OAuth plist is present and valid.
2. Ensure the device has an active internet connection.
3. Check that the key or app registration is active in physiology.presagetech.com.

If processing fails immediately with a missing-auth error, make sure you set sdk.config.apiKey = "YOUR_KEY" before calling try await SmartSpectraSDK.shared.start().

OAuth not working

When registering your OAuth app, you need your Apple Org ID (Team ID, e.g. AB12CDE34F), not a certificate fingerprint. Find it in App Store Connect. Place the downloaded PresageService-Info.plist in your app's root directory — no additional code is needed.

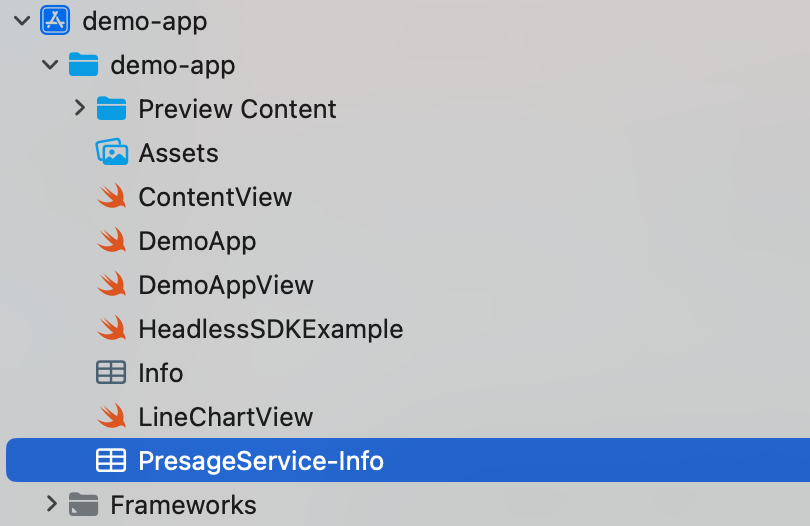

Your app repo should look roughly like this:

Note: Each bundle identifier can only be registered once. You cannot create multiple OAuth configs for the same bundle ID.

Metrics & Data

Pulse rate / cardio metrics not appearing

Breathing metrics are enabled by default. Cardio metrics are not. Enable them explicitly:

let sdk = SmartSpectraSDK.shared

sdk.config.requestedMetrics = SmartSpectraConfig.breathingMetrics + SmartSpectraConfig.cardioMetrics
// or
sdk.config.requestedMetrics = [
    .breathingRate,
    .pulseRate,
    .hrv
]

metricsBuffer / $metricsBuffer unresolved

MetricsBuffer was removed. Replace metricsBuffer with sdk.metrics. The SDK now uses Swift Observation, so Combine-style $ publishers such as sdk.$metrics are no longer available.

// Before
sdk.$metricsBuffer.sink { buffer in
    let pulse = buffer?.pulse.rate.last?.value
}

// After in SwiftUI
if let metrics = sdk.metrics {
    let pulse = metrics.cardio.pulseRate.last?.value
}

SwiftUI views automatically track reads of sdk.metrics. For UIKit or other non-SwiftUI code, observe SDK properties with withObservationTracking and re-arm the observation after each change.

Field mapping:

Important: Cardio fields now require cardio metrics to be requested explicitly, for example through requestedMetrics. Previously, MetricsBuffer provided pulse rate regardless of configuration.

Headless Mode

processingStatus cases don't match

SmartSpectraSDK.processingStatus uses the current lifecycle states. Update any switch or comparisons:

startProcessing() / stopProcessing() unresolved or inaccessible

SmartSpectraVitalsProcessor is no longer part of the public Swift API. Use the async lifecycle methods on SmartSpectraSDK.shared:

do {
    try await SmartSpectraSDK.shared.start()

    // Observe SmartSpectraSDK.shared.metrics,
    // SmartSpectraSDK.shared.processingStatus,
    // SmartSpectraSDK.shared.validationStatus, etc.

    try await SmartSpectraSDK.shared.stop()
} catch {
    print("SmartSpectra error: \(error)")
}

For older-to-current mappings, see the iOS Migration Guide.

Getting Help

• Email: support@presagetech.com
• Submit a GitHub issue
• API reference: Swift API reference
