Abstract interface for camera/video input sources. More...

#include <video_source.hpp>

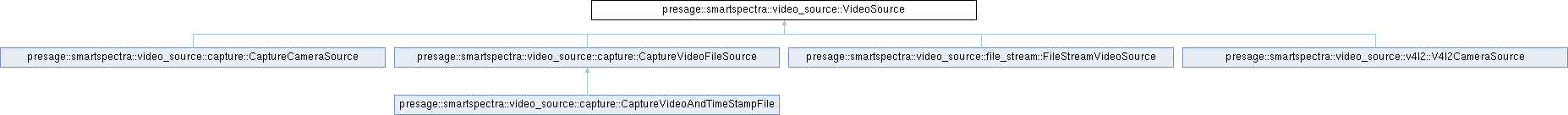

Inheritance diagram for presage::smartspectra::video_source::VideoSource:

Public Member Functions
VideoSource &	operator>> (cv::Mat &frame)
virtual absl::Status	Initialize (const VideoSourceSettings &settings)
virtual bool	SupportsExactFrameTimestamp () const =0
virtual int64_t	GetFrameTimestamp () const =0
virtual absl::Status	TurnOnAutoExposure ()
	Enable automatic exposure mode.
virtual absl::Status	TurnOffAutoExposure ()
	Disable automatic exposure and switch to manual mode.
virtual absl::Status	ToggleAutoExposure ()
	Toggle between automatic and manual exposure modes.
virtual absl::StatusOr< bool >	IsAutoExposureOn ()
	Check if automatic exposure is currently enabled.
virtual absl::Status	IncreaseExposure ()
	Increase exposure by a fixed hardware-specific step.
virtual absl::Status	DecreaseExposure ()
	Decrease exposure by a fixed hardware-specific step.
virtual absl::Status	SetExposure (double value)
	Set exposure to a normalized value.
virtual absl::StatusOr< double >	GetExposure ()
	Get current exposure as a normalized value.
virtual bool	SupportsExposureControls ()
	Check if this video source supports exposure controls.
virtual bool	SupportsWhiteBalanceControls ()
	Check if this video source supports white balance controls.
virtual absl::Status	TurnOnAutoWhiteBalance ()
	Enable automatic white balance mode.
virtual absl::Status	TurnOffAutoWhiteBalance ()
	Disable automatic white balance and switch to manual mode.
virtual absl::Status	ToggleAutoWhiteBalance ()
	Toggle between automatic and manual white balance modes.
virtual absl::StatusOr< bool >	IsAutoWhiteBalanceOn ()
	Check if automatic white balance is currently enabled.
virtual absl::Status	IncreaseWhiteBalance ()
	Increase white balance temperature by a fixed hardware-specific step.
virtual absl::Status	DecreaseWhiteBalance ()
	Decrease white balance temperature by a fixed hardware-specific step.
virtual absl::Status	SetWhiteBalance (double value)
	Set white balance temperature to a normalized value.
virtual absl::StatusOr< double >	GetWhiteBalance ()
	Get current white balance temperature as a normalized value.
virtual bool	SupportsGainControl ()
	Check if this video source supports gain controls.
virtual absl::Status	IncreaseGain ()
	Increase gain by a fixed hardware-specific step.
virtual absl::Status	DecreaseGain ()
	Decrease gain by a fixed hardware-specific step.
virtual absl::Status	SetGain (double value)
	Set gain to a normalized value.
virtual absl::StatusOr< double >	GetGain ()
	Get current gain as a normalized value.
virtual int	GetWidth ()
virtual int	GetHeight ()
virtual InputTransformMode	GetDefaultInputTransformMode ()
bool	HasFrameDimensions ()
virtual bool	SupportsCompressedOutput ()
virtual bool	ProduceCompressedFrame (std::vector< uint8_t > &jpeg_data)

Protected Member Functions
virtual void	ProducePreTransformFrame (cv::Mat &frame)=0

Protected Attributes
InputTransformer	input_transformer

Detailed Description

Abstract interface for camera/video input sources.

Member Function Documentation

◆ DecreaseExposure()

absl::Status presage::smartspectra::video_source::VideoSource::DecreaseExposure ( )

virtual

Decrease exposure by a fixed hardware-specific step.

Returns: Status indicating success or failure.

Note: Only works in manual exposure mode.

Reimplemented in presage::smartspectra::video_source::capture::CaptureCameraSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ DecreaseGain()

absl::Status presage::smartspectra::video_source::VideoSource::DecreaseGain ( )

virtual

Decrease gain by a fixed hardware-specific step.

Returns: Status indicating success or failure.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ DecreaseWhiteBalance()

absl::Status presage::smartspectra::video_source::VideoSource::DecreaseWhiteBalance ( )

virtual

Decrease white balance temperature by a fixed hardware-specific step.

Returns: Status indicating success or failure.

Note: Only works in manual white balance mode.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ GetExposure()

absl::StatusOr< double > presage::smartspectra::video_source::VideoSource::GetExposure ( )

virtual

Get current exposure as a normalized value.

Returns: StatusOr containing normalized exposure value in range [0.0, 1.0].

Note: Hardware values are automatically normalized for consistent API.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ GetFrameTimestamp()

virtual int64_t presage::smartspectra::video_source::VideoSource::GetFrameTimestamp ( ) const

pure virtual

return the current frame's timestamp, in microseconds

Implemented in presage::smartspectra::video_source::capture::CaptureCameraSource, presage::smartspectra::video_source::capture::CaptureVideoAndTimeStampFile, presage::smartspectra::video_source::capture::CaptureVideoFileSource, presage::smartspectra::video_source::file_stream::FileStreamVideoSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ GetGain()

absl::StatusOr< double > presage::smartspectra::video_source::VideoSource::GetGain ( )

virtual

Get current gain as a normalized value.

Returns: StatusOr containing normalized gain value in range [0.0, 1.0].

Note: Hardware gain values are automatically normalized for consistent API.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ GetWhiteBalance()

absl::StatusOr< double > presage::smartspectra::video_source::VideoSource::GetWhiteBalance ( )

virtual

Get current white balance temperature as a normalized value.

Returns: StatusOr containing normalized white balance value in range [0.0, 1.0].

Note: Hardware temperature values are automatically normalized for consistent API.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ HasFrameDimensions()

bool presage::smartspectra::video_source::VideoSource::HasFrameDimensions ( )

Check if the source has valid frame dimension information.

◆ IncreaseExposure()

absl::Status presage::smartspectra::video_source::VideoSource::IncreaseExposure ( )

virtual

Increase exposure by a fixed hardware-specific step.

Returns: Status indicating success or failure.

Note: Only works in manual exposure mode.

Reimplemented in presage::smartspectra::video_source::capture::CaptureCameraSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ IncreaseGain()

absl::Status presage::smartspectra::video_source::VideoSource::IncreaseGain ( )

virtual

Increase gain by a fixed hardware-specific step.

Returns: Status indicating success or failure.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ IncreaseWhiteBalance()

absl::Status presage::smartspectra::video_source::VideoSource::IncreaseWhiteBalance ( )

virtual

Increase white balance temperature by a fixed hardware-specific step.

Returns: Status indicating success or failure.

Note: Only works in manual white balance mode.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ Initialize()

absl::Status presage::smartspectra::video_source::VideoSource::Initialize ( const VideoSourceSettings & settings )

virtual

Configure the source with provided settings.

Reimplemented in presage::smartspectra::video_source::capture::CaptureCameraSource, presage::smartspectra::video_source::capture::CaptureVideoAndTimeStampFile, presage::smartspectra::video_source::capture::CaptureVideoFileSource, presage::smartspectra::video_source::file_stream::FileStreamVideoSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ IsAutoExposureOn()

absl::StatusOr< bool > presage::smartspectra::video_source::VideoSource::IsAutoExposureOn ( )

virtual

Check if automatic exposure is currently enabled.

Returns: StatusOr containing true if auto exposure is on, false otherwise.

Reimplemented in presage::smartspectra::video_source::capture::CaptureCameraSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ IsAutoWhiteBalanceOn()

absl::StatusOr< bool > presage::smartspectra::video_source::VideoSource::IsAutoWhiteBalanceOn ( )

virtual

Check if automatic white balance is currently enabled.

Returns: StatusOr containing true if auto white balance is on, false otherwise.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ operator>>()

VideoSource & presage::smartspectra::video_source::VideoSource::operator>> ( cv::Mat & frame )

Grab the next frame from the source.

◆ ProduceCompressedFrame()

bool presage::smartspectra::video_source::VideoSource::ProduceCompressedFrame ( std::vector< uint8_t > & jpeg_data )

virtual

Get the next frame as compressed JPEG data (if supported). Only call this if SupportsCompressedOutput() returns true.

Parameters

jpeg_data Output buffer for compressed JPEG data

Returns: true if a compressed frame was successfully retrieved

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ SetExposure()

absl::Status presage::smartspectra::video_source::VideoSource::SetExposure ( double value )

virtual

Set exposure to a normalized value.

Parameters

value Normalized exposure value in range [0.0, 1.0] where 0.0 is minimum and 1.0 is maximum.

Returns: Status indicating success or failure.

Note: Values are automatically mapped to hardware-specific ranges.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ SetGain()

absl::Status presage::smartspectra::video_source::VideoSource::SetGain ( double value )

virtual

Set gain to a normalized value.

Parameters

value Normalized gain value in range [0.0, 1.0] where 0.0 is minimum and 1.0 is maximum.

Returns: Status indicating success or failure.

Note: Values are automatically mapped to hardware-specific gain ranges.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ SetWhiteBalance()

absl::Status presage::smartspectra::video_source::VideoSource::SetWhiteBalance ( double value )

virtual

Set white balance temperature to a normalized value.

Parameters

value Normalized white balance value in range [0.0, 1.0] where 0.0 is coolest and 1.0 is warmest.

Returns: Status indicating success or failure.

Note: Values are automatically mapped to hardware-specific temperature ranges (typically 2800K-6500K).

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ SupportsCompressedOutput()

bool presage::smartspectra::video_source::VideoSource::SupportsCompressedOutput ( )

virtual

Check if this video source can provide compressed JPEG frames directly. This allows bypassing recompression when the source already provides MJPEG.

Returns: true if ProduceCompressedFrame() is supported

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ SupportsExposureControls()

bool presage::smartspectra::video_source::VideoSource::SupportsExposureControls ( )

virtual

Check if this video source supports exposure controls.

Returns: true if exposure controls are available, false otherwise.

Reimplemented in presage::smartspectra::video_source::capture::CaptureCameraSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ SupportsGainControl()

bool presage::smartspectra::video_source::VideoSource::SupportsGainControl ( )

virtual

Check if this video source supports gain controls.

Returns: true if gain controls are available, false otherwise.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ SupportsWhiteBalanceControls()

bool presage::smartspectra::video_source::VideoSource::SupportsWhiteBalanceControls ( )

virtual

Check if this video source supports white balance controls.

Returns: true if white balance controls are available, false otherwise.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ ToggleAutoExposure()

absl::Status presage::smartspectra::video_source::VideoSource::ToggleAutoExposure ( )

virtual

Toggle between automatic and manual exposure modes.

Returns: Status indicating success or failure.

Reimplemented in presage::smartspectra::video_source::capture::CaptureCameraSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ ToggleAutoWhiteBalance()

absl::Status presage::smartspectra::video_source::VideoSource::ToggleAutoWhiteBalance ( )

virtual

Toggle between automatic and manual white balance modes.

Returns: Status indicating success or failure.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ TurnOffAutoExposure()

absl::Status presage::smartspectra::video_source::VideoSource::TurnOffAutoExposure ( )

virtual

Disable automatic exposure and switch to manual mode.

Returns: Status indicating success or failure.

Reimplemented in presage::smartspectra::video_source::capture::CaptureCameraSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ TurnOffAutoWhiteBalance()

absl::Status presage::smartspectra::video_source::VideoSource::TurnOffAutoWhiteBalance ( )

virtual

Disable automatic white balance and switch to manual mode.

Returns: Status indicating success or failure.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ TurnOnAutoExposure()

absl::Status presage::smartspectra::video_source::VideoSource::TurnOnAutoExposure ( )

virtual

Enable automatic exposure mode.

Returns: Status indicating success or failure.

Reimplemented in presage::smartspectra::video_source::capture::CaptureCameraSource, and presage::smartspectra::video_source::v4l2::V4l2CameraSource.

◆ TurnOnAutoWhiteBalance()

absl::Status presage::smartspectra::video_source::VideoSource::TurnOnAutoWhiteBalance ( )

virtual

Enable automatic white balance mode.

Returns: Status indicating success or failure.

Reimplemented in presage::smartspectra::video_source::v4l2::V4l2CameraSource.

The documentation for this class was generated from the following files:

smartspectra/video_source/video_source.hpp
smartspectra/video_source/video_source.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ DecreaseExposure()

◆ DecreaseGain()

◆ DecreaseWhiteBalance()

◆ GetExposure()

◆ GetFrameTimestamp()

◆ GetGain()

◆ GetWhiteBalance()

◆ HasFrameDimensions()

◆ IncreaseExposure()

◆ IncreaseGain()

◆ IncreaseWhiteBalance()

◆ Initialize()

◆ IsAutoExposureOn()

◆ IsAutoWhiteBalanceOn()

◆ operator>>()

◆ ProduceCompressedFrame()

◆ SetExposure()

◆ SetGain()

◆ SetWhiteBalance()

◆ SupportsCompressedOutput()

◆ SupportsExposureControls()

◆ SupportsGainControl()

◆ SupportsWhiteBalanceControls()

◆ ToggleAutoExposure()

◆ ToggleAutoWhiteBalance()

◆ TurnOffAutoExposure()

◆ TurnOffAutoWhiteBalance()

◆ TurnOnAutoExposure()

◆ TurnOnAutoWhiteBalance()
