presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode > Class Template Reference

Base container encapsulating the MediaPipe graph and common callbacks. More...

#include <container.hpp>

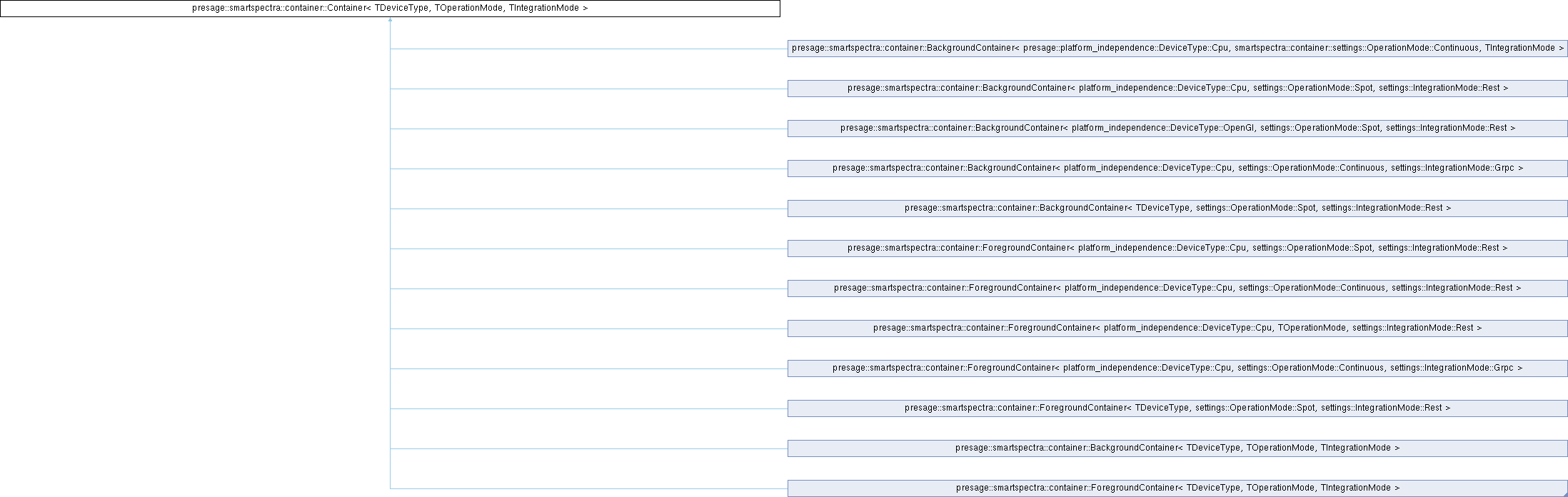

Inheritance diagram for presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >:

Public Types
typedef container::settings::Settings< TOperationMode, TIntegrationMode >	SettingsType

Public Member Functions
	Container (SettingsType settings)
absl::Status	SetOnStatusChange (const std::function< absl::Status(physiology::StatusValue)> &on_status_change)
absl::Status	SetOnStatusCode (const std::function< absl::Status(physiology::StatusValue)> &on_status_code)
absl::Status	SetOnEdgeMetricsOutput (const std::function< absl::Status(const physiology::Metrics &, int64_t input_timestamp)> &on_edge_metrics_output)
absl::Status	SetOnCoreMetricsOutput (const std::function< absl::Status(const physiology::MetricsBuffer &, int64_t input_timestamp)> &on_core_metrics_output)
absl::Status	SetOnVideoOutput (const std::function< absl::Status(cv::Mat &output_frame, int64_t input_timestamp)> &on_video_output)
absl::Status	SetOnFrameSentThrough (const std::function< absl::Status(bool frame_sent_through, int64_t input_timestamp)> &on_dropped_frame)
absl::Status	SetOnCorePerformanceTelemetry (const std::function< absl::Status(double, double, int64_t)> &on_effective_core_fps_output)
virtual absl::Status	Initialize ()

Protected Member Functions
virtual std::string	GetThirdGraphFileSuffix () const
virtual std::string	GetGraphFilePrefix () const
absl::StatusOr< std::filesystem::path >	GetGraphFilePath (bool binary_graph=true) const
absl::Status	ComputeCorePerformanceTelemetry (const physiology::MetricsBuffer &metrics_buffer)
void	AddFrameTimestampToBenchmarkingInfo (const mediapipe::Timestamp &timestamp)

Protected Attributes
SettingsType	settings
mediapipe::CalculatorGraph	graph
std::function< absl::Status(physiology::StatusValue)>	OnStatusChange
std::function< absl::Status(physiology::StatusValue)>	OnStatusCode
std::function< absl::Status(const physiology::Metrics &, int64_t input_timestamp)>	OnEdgeMetricsOutput
std::function< absl::Status(const physiology::MetricsBuffer &, int64_t input_timestamp)>	OnCoreMetricsOutput
std::function< absl::Status(cv::Mat &output_frame, int64_t input_timestamp)>	OnVideoOutput
std::function< absl::Status(bool frame_sent_through, int64_t input_timestamp)>	OnFrameSentThrough
std::optional< std::function< absl::Status(double fps, double latency_s, int64_t input_timestamp)> >	OnCorePerformanceTelemetry = std::nullopt
platform_independence::DeviceContext< TDeviceType >	device_context
bool	initialized = false
bool	running = false
physiology::StatusValue	status
bool	recording = false
cv::Mat	output_frame_bgr
OperationContext< TOperationMode >	operation_context

Detailed Description

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>
class presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >

Base container encapsulating the MediaPipe graph and common callbacks.

Template Parameters

TDeviceType	Target device type (CPU/OpenGL/etc).
TOperationMode	Operation mode (Spot or Continuous).
TIntegrationMode	Integration mode (REST or gRPC).

Constructor & Destructor Documentation

Container()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::Container ( Container< TDeviceType, TOperationMode, TIntegrationMode >::SettingsType settings )

explicit

Construct a container with the provided settings.

Member Function Documentation

AddFrameTimestampToBenchmarkingInfo()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

void presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::AddFrameTimestampToBenchmarkingInfo ( const mediapipe::Timestamp & timestamp )

protected

Track the timestamp of each frame added to the graph for benchmarking.

ComputeCorePerformanceTelemetry()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::ComputeCorePerformanceTelemetry ( const physiology::MetricsBuffer & metrics_buffer )

protected

Compute FPS and latency information from a metrics buffer.

Computes effective fps if OnEffectiveCoreFpsOutput has been set. Relies on this->frames_in_graph_timestamps with timestamps of every frame put into the graph (AddFrameTimestampToBenchmarkingInfo should be used in child classes at every frame)

Parameters

metrics_buffer

- last output metrics buffer

Returns

status

GetGraphFilePath()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

absl::StatusOr< std::filesystem::path > presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::GetGraphFilePath ( bool binary_graph = true ) const

protected

Resolve the path to the MediaPipe graph file on disk.

Parameters

binary_graph

true to use the binary form of the graph

GetGraphFilePrefix()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

std::string presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::GetGraphFilePrefix ( ) const

protectedvirtual

Prefix used when searching for graph files on disk.

Reimplemented in presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >, and presage::smartspectra::lab::PreprocessingForegroundContainer< platform_independence::DeviceType::Cpu, TOperationMode, container::settings::IntegrationMode::Rest >.

GetThirdGraphFileSuffix()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

std::string presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::GetThirdGraphFileSuffix ( ) const

protectedvirtual

Retrieve the suffix used for the optional third graph file.

Reimplemented in presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >, and presage::smartspectra::lab::PreprocessingForegroundContainer< platform_independence::DeviceType::Cpu, TOperationMode, container::settings::IntegrationMode::Rest >.

Initialize()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::Initialize ( )

virtual

Initialize the underlying MediaPipe graph and device context.

Reimplemented in presage::smartspectra::container::BackgroundContainer< TDeviceType, TOperationMode, TIntegrationMode >, presage::smartspectra::container::BackgroundContainer< platform_independence::DeviceType::Cpu, settings::OperationMode::Continuous, settings::IntegrationMode::Grpc >, presage::smartspectra::container::BackgroundContainer< platform_independence::DeviceType::Cpu, settings::OperationMode::Spot, settings::IntegrationMode::Rest >, presage::smartspectra::container::BackgroundContainer< platform_independence::DeviceType::OpenGl, settings::OperationMode::Spot, settings::IntegrationMode::Rest >, presage::smartspectra::container::BackgroundContainer< presage::platform_independence::DeviceType::Cpu, smartspectra::container::settings::OperationMode::Continuous, TIntegrationMode >, presage::smartspectra::container::BackgroundContainer< TDeviceType, settings::OperationMode::Spot, settings::IntegrationMode::Rest >, presage::smartspectra::container::ForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >, presage::smartspectra::container::ForegroundContainer< platform_independence::DeviceType::Cpu, settings::OperationMode::Continuous, settings::IntegrationMode::Grpc >, presage::smartspectra::container::ForegroundContainer< platform_independence::DeviceType::Cpu, settings::OperationMode::Continuous, settings::IntegrationMode::Rest >, presage::smartspectra::container::ForegroundContainer< platform_independence::DeviceType::Cpu, settings::OperationMode::Spot, settings::IntegrationMode::Rest >, presage::smartspectra::container::ForegroundContainer< platform_independence::DeviceType::Cpu, TOperationMode, settings::IntegrationMode::Rest >, and presage::smartspectra::container::ForegroundContainer< TDeviceType, settings::OperationMode::Spot, settings::IntegrationMode::Rest >.

SetOnCoreMetricsOutput()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::SetOnCoreMetricsOutput

(

const std::function< absl::Status(const physiology::MetricsBuffer &, int64_t input_timestamp)> &

on_core_metrics_output

)

Set callback invoked when metrics are produced by the core processing pipeline.

SetOnCorePerformanceTelemetry()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::SetOnCorePerformanceTelemetry

(

const std::function< absl::Status(double, double, int64_t)> &

on_effective_core_fps_output

)

Set callback for benchmarking effective core FPS and latency.

SetOnFrameSentThrough()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::SetOnFrameSentThrough

(

const std::function< absl::Status(bool frame_sent_through, int64_t input_timestamp)> &

on_dropped_frame

)

Set callback used for frame drop diagnostics.

SetOnStatusChange()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::SetOnStatusChange

(

const std::function< absl::Status(physiology::StatusValue)> &

on_status_change

)

Set callback invoked whenever the preprocessing status changes.

SetOnStatusCode()

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::SetOnStatusCode

(

const std::function< absl::Status(physiology::StatusValue)> &

on_status_code

)

Set callback invoked on EVERY status code update (regardless of whether it changed). This is useful for camera tuning which needs to observe all status updates.

Member Data Documentation

OnCoreMetricsOutput

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

std::function<absl::Status(const physiology::MetricsBuffer&, int64_t input_timestamp)> presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::OnCoreMetricsOutput

protected

Initial value:

=
        [](const physiology::MetricsBuffer&, int64_t input_timestamp) { return absl::OkStatus(); }

OnEdgeMetricsOutput

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

std::function<absl::Status(const physiology::Metrics&, int64_t input_timestamp)> presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::OnEdgeMetricsOutput

protected

Initial value:

=
        [](const physiology::Metrics&, int64_t input_timestamp) { return absl::OkStatus(); }

OnFrameSentThrough

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

std::function<absl::Status(bool frame_sent_through, int64_t input_timestamp)> presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::OnFrameSentThrough

protected

Initial value:

=
        [](bool frame_sent_through, int64_t input_timestamp) { return absl::OkStatus(); }

OnStatusChange

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

std::function<absl::Status(physiology::StatusValue)> presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::OnStatusChange

protected

Initial value:

=
        [](physiology::StatusValue status) { return absl::OkStatus(); }

OnStatusCode

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

std::function<absl::Status(physiology::StatusValue)> presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::OnStatusCode

protected

Initial value:

=
        [](physiology::StatusValue status) { return absl::OkStatus(); }

OnVideoOutput

template<platform_independence::DeviceType TDeviceType, settings::OperationMode TOperationMode, settings::IntegrationMode TIntegrationMode>

std::function<absl::Status(cv::Mat& output_frame, int64_t input_timestamp)> presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >::OnVideoOutput

protected

Initial value:

=
        [](cv::Mat& output_frame, int64_t input_timestamp) { return absl::OkStatus(); }

---

The documentation for this class was generated from the following files:

• smartspectra/container/container.hpp
• smartspectra/container/container_impl.hpp
