presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode > Class Template Reference

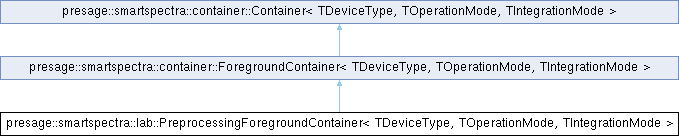

Inheritance diagram for presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >:

Public Types
typedef container::settings::Settings< TOperationMode, TIntegrationMode >	SettingsType
using	Base = container::ForegroundContainer<TDeviceType, TOperationMode, TIntegrationMode>
Public Types inherited from presage::smartspectra::container::ForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >
typedef container::settings::Settings< TOperationMode, TIntegrationMode >	SettingsType
using	Base = Container<TDeviceType, TOperationMode, TIntegrationMode>
Public Types inherited from presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >
typedef container::settings::Settings< TOperationMode, TIntegrationMode >	SettingsType

Public Member Functions
	PreprocessingForegroundContainer (SettingsType settings)
absl::Status	DrawDebugOverlays (cv::Mat &output_frame_bgr)
Public Member Functions inherited from presage::smartspectra::container::ForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >
	ForegroundContainer (SettingsType settings)
absl::Status	Initialize () override
virtual absl::Status	Run ()
Public Member Functions inherited from presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >
	Container (SettingsType settings)
absl::Status	SetOnStatusChange (const std::function< absl::Status(physiology::StatusValue)> &on_status_change)
absl::Status	SetOnStatusCode (const std::function< absl::Status(physiology::StatusValue)> &on_status_code)
absl::Status	SetOnEdgeMetricsOutput (const std::function< absl::Status(const physiology::Metrics &, int64_t input_timestamp)> &on_edge_metrics_output)
absl::Status	SetOnCoreMetricsOutput (const std::function< absl::Status(const physiology::MetricsBuffer &, int64_t input_timestamp)> &on_core_metrics_output)
absl::Status	SetOnVideoOutput (const std::function< absl::Status(cv::Mat &output_frame, int64_t input_timestamp)> &on_video_output)
absl::Status	SetOnFrameSentThrough (const std::function< absl::Status(bool frame_sent_through, int64_t input_timestamp)> &on_dropped_frame)
absl::Status	SetOnCorePerformanceTelemetry (const std::function< absl::Status(double, double, int64_t)> &on_effective_core_fps_output)

Public Attributes
std::function< absl::Status(const nlohmann::json &, int64_t input_timestamp)>	OnPreprocessedDataOutput

Protected Member Functions
std::string	GetThirdGraphFileSuffix () const override
std::string	GetGraphFilePrefix () const override
absl::Status	InitializeOutputDataPollers () override
absl::Status	HandleOutputData (int64_t frame_timestamp) override
Protected Member Functions inherited from presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >
absl::StatusOr< std::filesystem::path >	GetGraphFilePath (bool binary_graph=true) const
absl::Status	ComputeCorePerformanceTelemetry (const physiology::MetricsBuffer &metrics_buffer)
void	AddFrameTimestampToBenchmarkingInfo (const mediapipe::Timestamp &timestamp)

Additional Inherited Members
Protected Attributes inherited from presage::smartspectra::container::ForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >
presage::smartspectra::container::output_stream_poller_wrapper::OutputStreamPollerWrapper	core_metrics_poller
presage::smartspectra::container::output_stream_poller_wrapper::OutputStreamPollerWrapper	edge_metrics_poller
bool	keep_grabbing_frames
std::shared_ptr< video_source::VideoSource >	video_source = nullptr
std::unique_ptr< video_source::CameraTuner >	camera_tuner = nullptr
bool	tuning_enabled = false
const bool	load_video
Protected Attributes inherited from presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >
SettingsType	settings
mediapipe::CalculatorGraph	graph
std::function< absl::Status(physiology::StatusValue)>	OnStatusChange
std::function< absl::Status(physiology::StatusValue)>	OnStatusCode
std::function< absl::Status(const physiology::Metrics &, int64_t input_timestamp)>	OnEdgeMetricsOutput
std::function< absl::Status(const physiology::MetricsBuffer &, int64_t input_timestamp)>	OnCoreMetricsOutput
std::function< absl::Status(cv::Mat &output_frame, int64_t input_timestamp)>	OnVideoOutput
std::function< absl::Status(bool frame_sent_through, int64_t input_timestamp)>	OnFrameSentThrough
std::optional< std::function< absl::Status(double fps, double latency_s, int64_t input_timestamp)> >	OnCorePerformanceTelemetry = std::nullopt
platform_independence::DeviceContext< TDeviceType >	device_context
bool	initialized = false
bool	running = false
physiology::StatusValue	status
bool	recording = false
cv::Mat	output_frame_bgr
OperationContext< TOperationMode >	operation_context

Member Function Documentation

GetGraphFilePrefix()

template<platform_independence::DeviceType TDeviceType, container::settings::OperationMode TOperationMode, container::settings::IntegrationMode TIntegrationMode>

std::string presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >::GetGraphFilePrefix ( ) const

nodiscardoverrideprotectedvirtual

Prefix used when searching for graph files on disk.

Reimplemented from presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >.

GetThirdGraphFileSuffix()

template<platform_independence::DeviceType TDeviceType, container::settings::OperationMode TOperationMode, container::settings::IntegrationMode TIntegrationMode>

std::string presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >::GetThirdGraphFileSuffix ( ) const

nodiscardoverrideprotectedvirtual

Retrieve the suffix used for the optional third graph file.

Reimplemented from presage::smartspectra::container::Container< TDeviceType, TOperationMode, TIntegrationMode >.

HandleOutputData()

template<platform_independence::DeviceType TDeviceType, c::settings::OperationMode TOperationMode, c::settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >::HandleOutputData ( int64_t frame_timestamp )

overrideprotectedvirtual

Handle metrics and video output for the given frame.

Called from Run() at each frame iteration.

Template Parameters

TDeviceType
TOperationMode

Parameters

frame_timestamp

Returns

Reimplemented from presage::smartspectra::container::ForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >.

InitializeOutputDataPollers()

template<platform_independence::DeviceType TDeviceType, c::settings::OperationMode TOperationMode, c::settings::IntegrationMode TIntegrationMode>

absl::Status presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >::InitializeOutputDataPollers ( )

overrideprotectedvirtual

Setup MediaPipe pollers for metrics and video output.

Called from Run() to initialize the output data pollers.

Template Parameters

TDeviceType
TOperationMode

Parameters

frame_timestamp

Returns

status of the initialization

Reimplemented from presage::smartspectra::container::ForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >.

Member Data Documentation

OnPreprocessedDataOutput

template<platform_independence::DeviceType TDeviceType, container::settings::OperationMode TOperationMode, container::settings::IntegrationMode TIntegrationMode>

std::function<absl::Status(const nlohmann::json&, int64_t input_timestamp)> presage::smartspectra::lab::PreprocessingForegroundContainer< TDeviceType, TOperationMode, TIntegrationMode >::OnPreprocessedDataOutput

Initial value:

=
        [](const nlohmann::json&, int64_t input_timestamp){ return absl::OkStatus(); }

---

The documentation for this class was generated from the following files:

• lab/preprocessing_foreground_container.hpp
• lab/preprocessing_foreground_container_impl.hpp
